RTA Cabinet Assembly Instructions: A Step-by-Step Guide

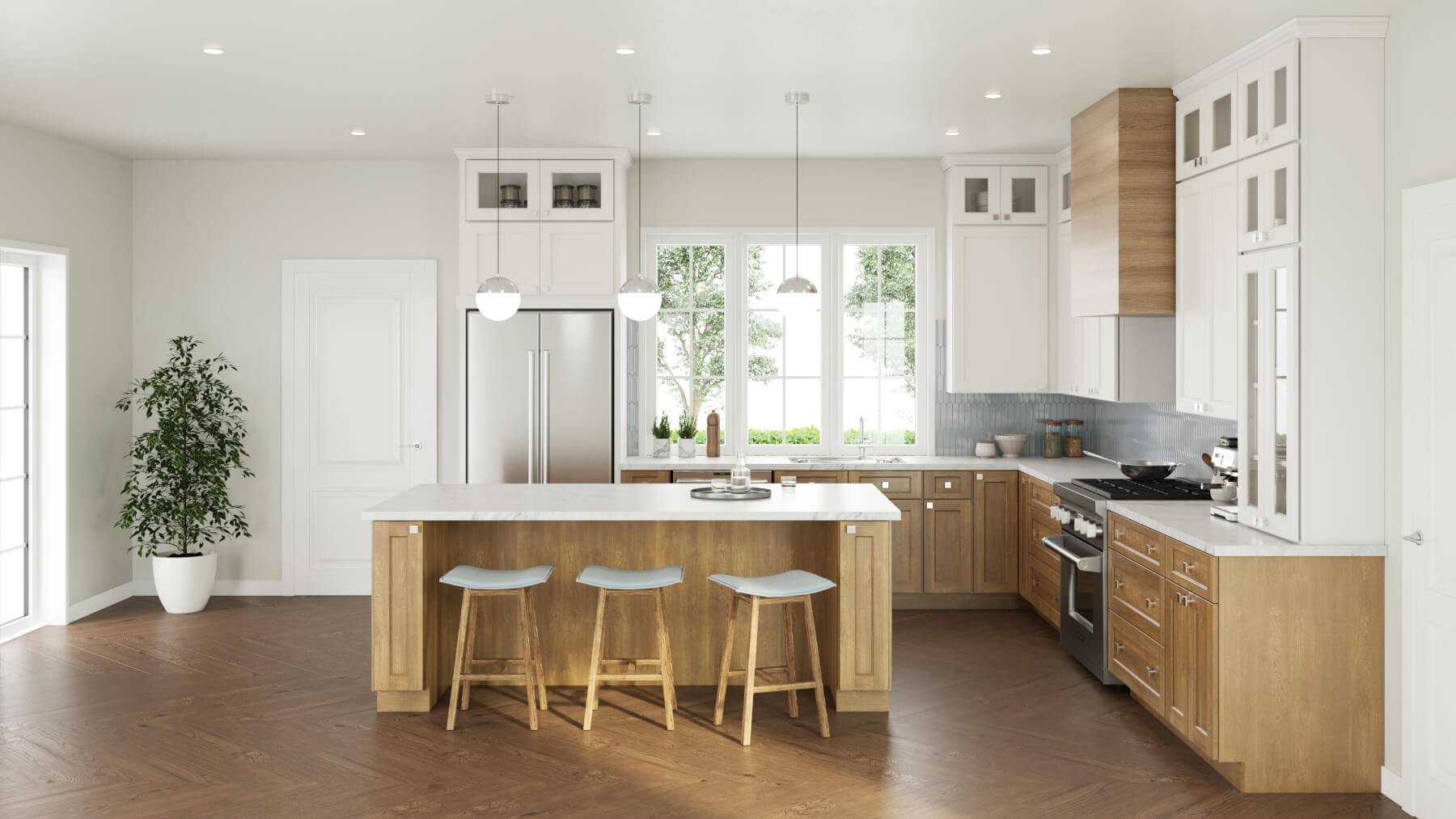

Warm kitchen with ready-to-assemble cabinetry

Ready-to-assemble cabinets reward a careful start. The parts are designed to become a sturdy cabinet box, but the first hour determines whether the rest of the project feels organized or frustrating. A clean work area, the right sequence and a quick inspection before installation make a real difference.

Every cabinet line has its own joinery, hardware and order of operations, so the instruction sheet that comes with your cabinets is the final authority. This guide gives you the practical framework around that sheet: how to prepare the parts, build a box that stays square, fit doors and drawers, and know when a cabinet is ready to leave the work area.

Before You Start: Set Up One Good Workstation

Do not open every carton in the room and hope the pieces sort themselves out. Begin with one cabinet, one flat work surface and enough room to lay its panels down without stacking finished faces on top of one another. A large sheet of cardboard, a moving blanket or a clean drop cloth protects finished parts from grit and accidental scratches.

Keep the carton label, instruction sheet and hardware for that cabinet together. It sounds basic, but a drawer slide or hinge from a neighboring cabinet can look almost identical until it creates a fit problem later. Open the box, check the parts against the packing list and set aside any piece that looks damaged before assembly begins.

Most builds call for a drill or driver with the correct bit, a hand screwdriver, a rubber mallet, a tape measure and a square. Use power tools with restraint. Fasteners should be secure, not driven so hard that they strip a cam, split an edge or pull a panel out of alignment. The assembly guidance from Lowe's RTA cabinet overview makes the same useful point: work on a level surface, identify the parts first and protect the finish while you build.

Choose a workflow that matches the room. Base cabinets, wall cabinets, drawer bases and tall pantry cabinets have different parts, even when the basic box looks similar. Group completed cabinets by room or wall run and label them from your plan. That keeps a tall pantry from ending up in the wrong corner and prevents a finished wall cabinet from becoming a makeshift worktable.

Step 1: Dry-Fit the Parts and Read the Sequence

Before applying adhesive or tightening a single cam, place the side panels, bottom, back, face frame, rails and shelves where the instructions show they belong. Locate the finished face of each piece and pay attention to predrilled holes. A panel installed backward can still appear to fit until the drawer slides, hinge plates or shelf pins do not line up.

Look for a few common landmarks: the toe-kick side on a base cabinet, the finished face on the frame, the grooves that receive a back panel and the rows of shelf-pin holes inside the cabinet. If the box uses dowels, check that they seat cleanly. If it uses cams, make sure the opening is facing the matching connector before turning anything. The goal of a dry fit is not speed. It is catching an orientation error while it takes seconds to fix.

Do not assume that a base-cabinet sequence applies to every piece. Drawer cabinets, sink bases, blind corners and pantries often add rails, braces, slides or specialty hardware at a different point in the build. Product-specific guides, including this cabinet assembly guide, are useful reminders that cabinet type changes the order of the work.

Step 2: Build the Box on a Flat Surface

Start with the cabinet structure, usually the bottom, two sides and back. Keep the panels supported on the work surface as you bring them together. When a cabinet is built in the air, one person ends up holding the box while another tries to line up several connections at once. That is how a clean joint becomes a chipped edge or a twisted box.

Engage each connector lightly at first. You want the parts captured but still able to move enough for adjustment. Fit the back panel into its groove or position, then add fixed rails, braces or the face frame in the sequence shown by the instructions. If adhesive is specified, use a controlled bead where the directions call for it. More glue is not better when it squeezes onto a finished face or blocks a hardware hole.

Finished oak kitchen cabinetry with aligned doors and drawers

As the box comes together, check the outer edges with your hand. They should meet cleanly, without one panel sitting proud of the other. A small mismatch is easier to correct before all of the fasteners are fully tightened. If a joint will not close, stop and inspect the groove, dowel or cam instead of forcing it. The problem is usually orientation, debris in a slot or a connector that has not seated.

Step 3: Square the Cabinet Before You Tighten It

A cabinet can look nearly square and still cause trouble when doors and drawers go on. The simplest check is diagonal measurement. Measure from the top left corner of the cabinet opening to the bottom right, then measure the other diagonal. When those numbers match, the box is square. If they do not, shift the cabinet gently on the flat surface until they do.

Once the box is square, tighten the connectors in a balanced pattern rather than working all the way around one side. Recheck the diagonals after the back, face frame or fixed shelf is secured because those parts can pull a box slightly out of shape. A square cabinet gives the hinges and drawer slides the predictable frame they need to work correctly.

Check for rocking before moving on. Put light pressure on opposite corners of the cabinet. If it rocks on the work surface, inspect the bottom, the back panel and the joints before assuming the floor is at fault. A completed cabinet should feel solid and sit evenly before doors, drawers or shelves add more variables.

Step 4: Add Hardware, Doors and Drawers

Install hinge plates, drawer slides, corner blocks and shelf supports only after the box is square. Use the factory holes whenever they are provided. They establish the position of the moving parts, and shifting them without a reason can make later adjustment much harder.

For drawer bases, install the left and right slides as a matched pair at the same height. Do not tighten one slide fully while the other is still floating. Place a straightedge or use the cabinet's predrilled locations to keep the pair level. Assemble the drawer box according to its directions, test the glide, then make small adjustments before adding the next drawer.

For doors, set the hinges, hang the door and inspect the reveal around each edge. A door that rubs, sits high or leaves a crooked gap is usually an adjustment issue, not a reason to force the hinge. Most concealed hinges allow modest side-to-side, height and depth adjustment. Make one small change at a time, close the door and reassess. This is slower than turning every screw at once, but it protects both the door finish and your patience.

Green shaker kitchen cabinetry with finished hardware and storage

Step 5: Inspect Each Cabinet Before Installation

Before a cabinet joins the installation stack, give it a short final inspection. Confirm that the box is square, the back is seated, the fixed components are secure and there are no loose fasteners or missing shelf pins. Open and close every door. Run each drawer in and out. Check that adjustable shelves sit on all of their supports rather than resting on just one side.

Keep protective material on finished cabinets while the rest of the project is underway. Do not stack heavy cartons on a completed cabinet, and do not lean doors against a wall where they can bow or be scratched. Place small bags of hardware, trim and fillers in labeled containers so those parts are available when the cabinet run is installed.

Finished shaker kitchen cabinetry prepared for installation

Installation is a separate job from assembly. Wall conditions, stud locations, plumbing, electrical lines, leveling and cabinet-to-cabinet fastening all affect the final result. If you are not comfortable handling those conditions, bring in an experienced installer. The cabinet should arrive at that stage square, complete and easy to place, not still waiting for basic assembly corrections.

Common RTA Cabinet Assembly Mistakes to Avoid

Opening multiple cabinet boxes at once. It makes matching parts and hardware harder than it needs to be.
Assembling on an uneven or dirty surface. A bad workstation can scratch finished parts and hide a cabinet that is not square.
Tightening every fastener before checking the diagonals. Leave enough adjustment to square the box, then secure it.
Forcing a connector that does not seat. Stop, check the orientation and clear the joint instead of damaging a panel edge.
Adding doors and drawers before the box is stable. Moving parts cannot compensate for a cabinet frame that twists or rocks.
Treating assembly and installation as the same task. Build the cabinet carefully first, then plan the wall, floor and utility work required to install it correctly.

Use a Repeatable Process for the Rest of the Order

The first cabinet is where you learn the hardware and the sequence. Once it is right, repeat that process instead of improvising a faster one. Build similar cabinet types in small batches, keep completed boxes organized by location and inspect each one before moving on. The result is a calmer workday and a cabinet run that is easier to level, align and finish.

RTA Quality Cabinets provides assembly videos to help you see the process for cabinet types in your project. Before ordering, you can also review the cabinet specifications, compare the available cabinet collections and use planning help when a cabinet list or room layout needs a second look. Those checks make it easier to start assembly with the right pieces and a plan that fits the room.

Frequently Asked Questions

How long does it take to assemble an RTA cabinet?

The time depends on the cabinet type, the hardware system and your experience. A straightforward base or wall cabinet often goes faster after the first one, while drawer bases, corners and tall pantry cabinets need more time. Plan the first cabinet as a learning run rather than setting an aggressive pace.

Do I need glue for RTA cabinets?

Use only the adhesive and assembly method specified in the instructions for your cabinet line. Some systems use glue in addition to cams, dowels or screws, while others use a different fastening method. Adding or skipping adhesive without the manufacturer’s direction can make later adjustments harder.

Should I assemble cabinets before the kitchen is ready for installation?

Usually, yes. Build and inspect the boxes in a clean, level work area before installation day. Keep the finished cabinets protected and organized by location so the installer can work from a clear cabinet plan.

What should I do if an RTA cabinet is not square?

Stop before adding doors, drawers or shelves. Loosen the appropriate connections, check that the box is sitting on a flat surface and compare the two diagonal measurements. Once the diagonals match, tighten the fasteners in the sequence given by the cabinet instructions.
